Coxreels T Series “Truck Mount” High-Pressure Spring Driven Hose Reels – 946

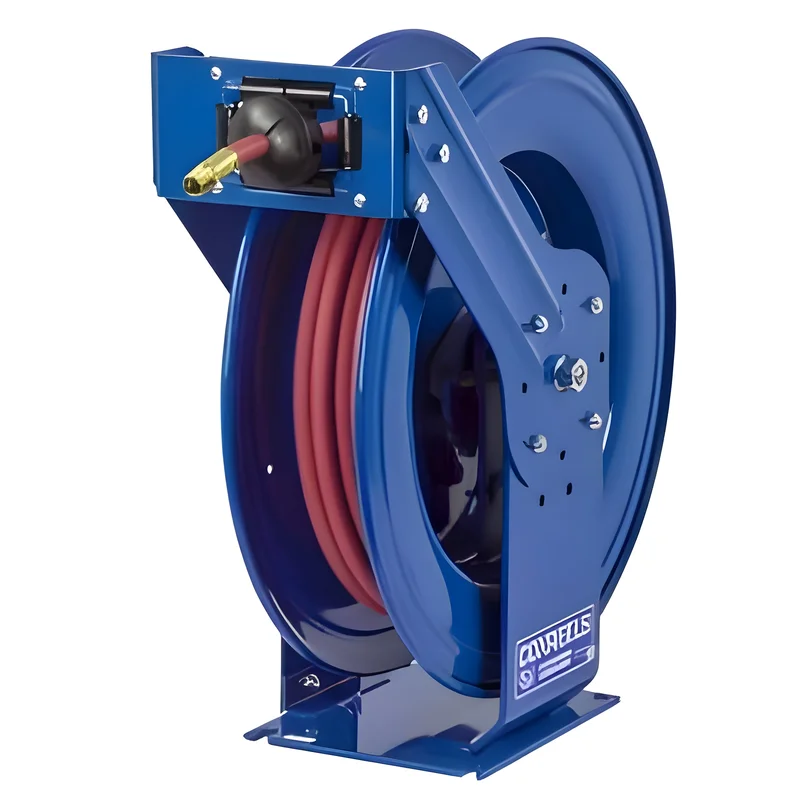

T Series “Truck Mount” High-Pressure Spring Driven Hose Reels
OXREELS T Series “Truck Mount” spring driven hose reels are the toughest hose reels in the spring driven line. The extra large chassis with dual pedestal-style arms and Coxreels’ Super Hub™ provides triple axle support while reducing vibration and strengthening the structural integrity of the reel. Making it perfect for off-road applications that demand reliability in the most abusive and demanding environments.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer’s limited warranty
- Made in the U.S.A. – Sold & Supported Worldwide
Features
- SWIVEL – Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CARTRIDGE MOTOR – Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- MULTI-POSITION GUIDE ARM – Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
Specifications
| MODEL | I.D | O.D | LENGTH | HOSE | MAX PSI | SHIP WEIGHT (LBS) | OVERALL DIMENSIONS (W) (H) (L) | MOUNTING PATTERN (M) (N) | BASE (X) (Y) |
|---|---|---|---|---|---|---|---|---|---|
| THP-N-1100 | 1/4″ | 9/16″ | 100′ | Yes | 5000 | 104 | 9.38″(W) 25.5″(H) 24″(L) | 7″(M) 8″(N) | 8″(X) 9″(Y) |
| THP-N-150 | 1/4″ | 9/16″ | 50′ | Yes | 5000 | 74 | 9.38″(W) 21.25″(H) 19.5″(L) | 7″(M) 8″(N) | 8″(X) 9″(Y) |
| THP-N-175 | 1/4″ | 9/16″ | 75′ | Yes | 5000 | 88 | 9.38″(W) 25.5″(H) 24″(L) | 7″(M) 8″(N) | 8″(X) 9″(Y) |
| THP-N-350 | 3/8″ | 11/16″ | 50′ | Yes | 4000 | 78 | 9.38″(W) 21.25″(H) 19.5″(L) | 7″(M) 8″(N) | 8″(X) 9″(Y) |
| THP-N-375 | 3/8″ | 11/16″ | 75′ | Yes | 4000 | 98 | 9.38″(W) 25.5″(H) 24″(L) | 7″(M) 8″(N) | 8″(X) 9″(Y) |
| THPL-N-1100 | 1/4″ | 9/16″ | 100′ | No | 5000 | 82 | 9.38″(W) 25.5″(H) 24″(L) | 7″(M) 8″(N) | 8″(X) 9″(Y) |
| THPL-N-150 | 1/4″ | 9/16″ | 50′ | No | 5000 | 62 | 9.38″(W) 21.25″(H) 19.5″(L) | 7″(M) 8″(N) | 8″(X) 9″(Y) |
| THPL-N-175 | 1/4″ | 9/16″ | 75′ | No | 5000 | 71 | 9.38″(W) 25.5″(H) 24″(L) | 7″(M) 8″(N) | 8″(X) 9″(Y) |
| THPL-N-350 | 3/8″ | 11/16″ | 50′ | No | 4000 | 66 | 9.38″(W) 21.25″(H) 19.5″(L) | 7″(M) 8″(N) | 8″(X) 9″(Y) |
| THPL-N-375 | 3/8″ | 11/16″ | 75′ | No | 4000 | 80 | 9.38″(W) 25.5″(H) 24″(L) | 7″(M) 8″(N) | 8″(X) 9″(Y) |
What Our Experts Think
- Truck Mount Design: Built for easy mounting on service trucks and utility vehicles, providing convenient high-pressure hose management on the move.
- High-Pressure Capability: Handles pressures up to 4,000 PSI, ideal for heavy-duty applications requiring powerful fluid transfer like air, water, and light hydraulic fluids.
- Spring-Driven Retraction: Offers smooth, automatic hose retraction, reducing manual effort and improving efficiency on the job.
- Heavy-Duty Construction: Built to endure demanding environments, ensuring long-lasting durability and optimal performance in harsh conditions.
- Corrosion-Resistant Coating: Designed to resist rust and corrosion, making it perfect for outdoor and rugged work environments.
- Space-Saving Design: Keeps hoses neatly stored and easily accessible, maximizing space on trucks and improving overall safety.
Q&A
Q: What is the Coxreels T Series „Truck Mount“ High-Pressure Spring Driven Hose Reel – 946?
A: The 946 is a high-pressure, spring-driven hose reel designed for truck mounting. It features automatic hose retraction, providing reliable and efficient hose management in mobile environments.
Q: What is the hose capacity of this reel?
A: The reel is capable of holding up to 400 feet of high-pressure hose, offering significant storage for heavy-duty applications.
Q: How does the spring-driven mechanism work?
A: The spring-driven rewind system ensures smooth and easy hose retraction, reducing manual effort and keeping your workspace organized.
Q: Is the reel durable enough for tough environments?
A: Yes, the 946 reel is made with high-quality, corrosion-resistant materials, making it ideal for outdoor and rugged conditions.
Q: How is this reel mounted?
A: The reel is designed for easy mounting on trucks, trailers, or other mobile platforms, making it perfect for service vehicles.
Q: What are typical applications for this reel?
A: Perfect for use in industries that require high-pressure fluid transfer, including automotive, industrial, and mobile service operations.
Maintenance Tips
- Model: 946
- Hose Capacity: Holds up to 100 feet of 1/4” or 3/8” high-pressure hose
- Pressure Rating: Suitable for high-pressure applications up to 5000 PSI
- Construction: Heavy-duty steel frame with a corrosion-resistant powder-coated finish for durability in tough environments
- Drive Mechanism: Spring-driven automatic rewind for effortless hose retraction, ensuring quick and easy hose management
- Swivel Inlet: Full-flow brass swivel for unrestricted fluid transfer and optimal performance
- Roller Design: Multi-position guide arm with reinforced rollers for smooth, consistent hose payout and retraction
- Mounting Type: Truck mount design, ideal for service vehicles, trailers, and mobile applications
- Applications: Perfect for high-pressure fluid or air transfer in mobile service, construction, and industrial environments
- Temperature Range: Operates effectively in a wide range of temperatures for outdoor use and field conditions
- Weight: Varies based on configuration and hose selection
