Description

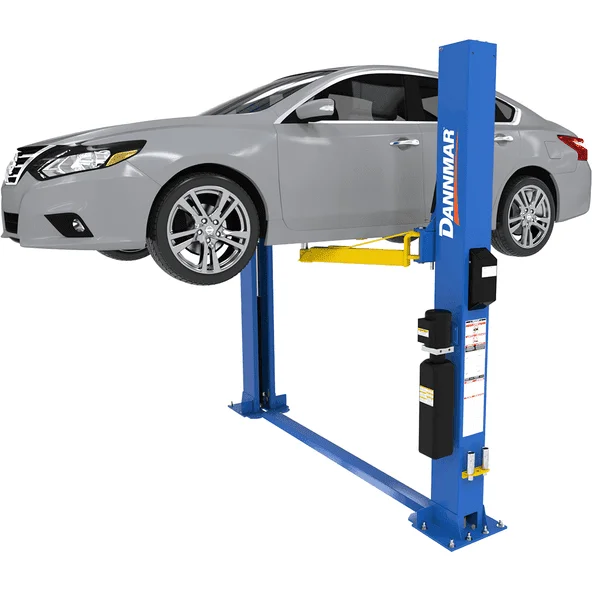

Dannmar D2-8F 8,000-lbs. Capacity Two-Post Lift / Floorplate / Includes Stackable Pads and Adapters
Dannmar’s tube arms have been redesigned to make it easier to open doors when vehicle lift points are engaged. This is especially useful if your vehicle has low-opening doors. Dannmar makes every effort to prevent damage to your vehicle’s body with the two-post lift design.
Features
-
Electric / hydraulic power system
-
Large, 17″ x 19″ A36 steel base plate
-
Self-lubricating dura-glide UHMW polyethylene bearings
-
Safety locks in each column spaced every 3”
-
Automatic arm restraints
-
Heavy-duty 1/2″ aircraft-quality equalizer cables
-
Oversized cable sheave diameter reduces cable fatigue
-
4-piece 63 mm stackable adapter set comes standard
-
Telescoping arm design for more versatile arm positioning
-
Single-point safety release
-
Drop-end arms provide a lower pad height
-
Dual hydraulic direct-drive cylinders
Specifications
| Actual Door Height (in.) | 96″ |
|---|---|
| Actual Door Thickness (in.) : 3″ | 3″ |
| Style | Floorplate |
| SKU# | 5175316 |
| Lifting Capacity | 8,000 lbs. (3,629 kg) |
| Lowered Height + Pad | 4.25” (108 mm) |
| Max. Lift Height (Top Lock) | 80.5” (2,045 mm) |
| Max. Rise | 72” (1,829 mm) |
| Height Overall | 113” (2,870 mm) |
| Width Overall | 132” (3,353 mm) or 145” (3,683 mm) |
| Width Outside Columns | 142.5″ (3,620 mm) |
