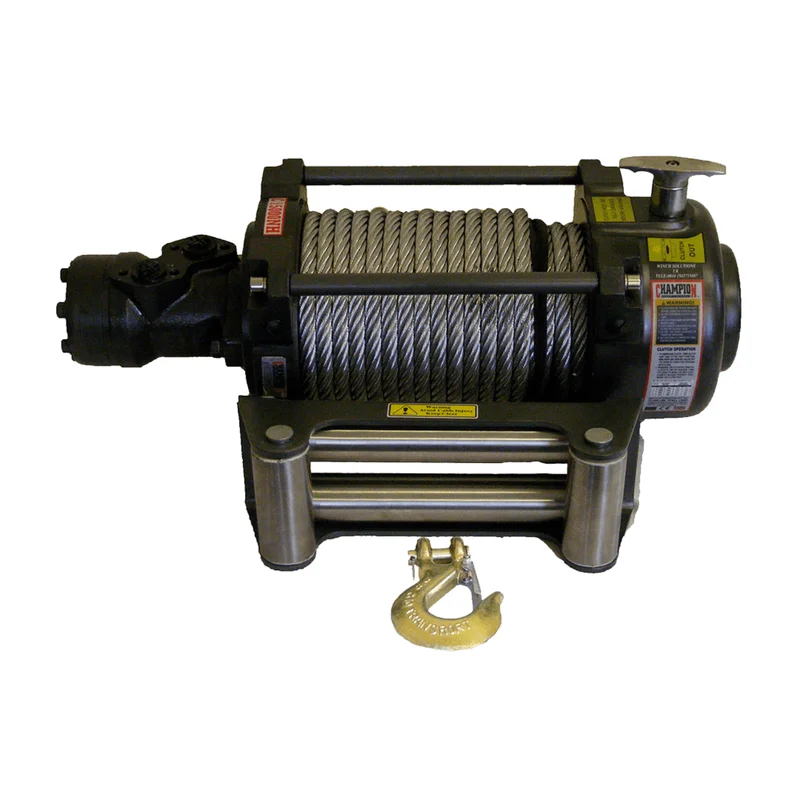

DK2 15,000 NH HYDRAULIC WINCH
COMPACT & TOUGH. WARRIOR HYDRAULIC WINCHES FOR INDUSTRIAL AND COMMERCIAL APPLICATIONS. VALUE WITHOUT COMPROMISE.
Compact, tough. A hydraulic winch for industrial and commercial applications. The unique
patented steel gearing system combined with a highly efficient and powerful hydraulic motor ensures
maximum performance over the full load range. Complete with internal brake to ensure maximum control
and load holding and backed by Warrior’s un-rivalled Limited Lifetime Warranty. Stainless steel roller fairleads and fittings are standard.
Features
-
Patented heavy duty gearing
-
Integral, automatic failsafe brake
-
Spring engaged manual freespool
-
Stainless steel fairlead and fittings
-
Rugged and compact for long life
Specification
| ITEM NUMBER | 15000NH |
|---|---|
| RATED LINE PULL | 15000 LBS (6804 KG) |
| MOTOR | HYDRAULIC DIS 80 ML/R |
| GEARING | 33.4:1 |
| DRUM SIZE – DIAMETER x LENGTH | 89 x 217mm (3.5 x 8.54′) |
| CABLE – DIAMETER x LENGTH | 12mm x 26.5m (0.47′ x 87′) |
| DIMENSIONS | 554 x 226 x 262mm (21.81 x 8.9 x 10.3′) |
| MOUNTING PATTERN | 254 x 114.3mm (10 x 4.5′) |
| WEIGHT | 68.8 KG (152 LBS) |
| MAX FLOW L/MIN | 45 |
| MAX PRESSURE MPA | 12.5 |
| CLUTCH | PULL & TURN |
| CERTIFICATION | CE CERTIFIED |
| LAYER OF ROPE / CABLE | LINE PULL: LBS (KGS) | ROPE ON DRUM FT (M) |
|---|---|---|
| 1 | 15000 (6804) | 18.0 (5.5) |
| 2 | 12120 (5498) | 41.7 (12.4) |
| 3 | 10168 (4612) | 65.9 (20.1) |
| 4 | 8757 (3972) | 86.9 (26.5) |
| LINE PULL: LBS (KGS) | LINE SPEED FT/MIN (M/MIN) | FLOW L/MIN • PRESSURE MPA |
|---|---|---|
| 0 | 1.6 (0.5) | 5 • 2.0 |
| 5000 (2268) | 3.3 (1.0) | 10 • 4.3 |
| 10000 (4536) | 6.6 (2.0) | 20 • 8.7 |
| 12000 (5443) | 9.8 (3.0) | 30 • 10.0 |
| 15000 (6804) | 19.7 (6.0) | 60 • 13.0 |
