Garland U48-8LL US Range U Series Ranges Gas Ranges – U48-8LL

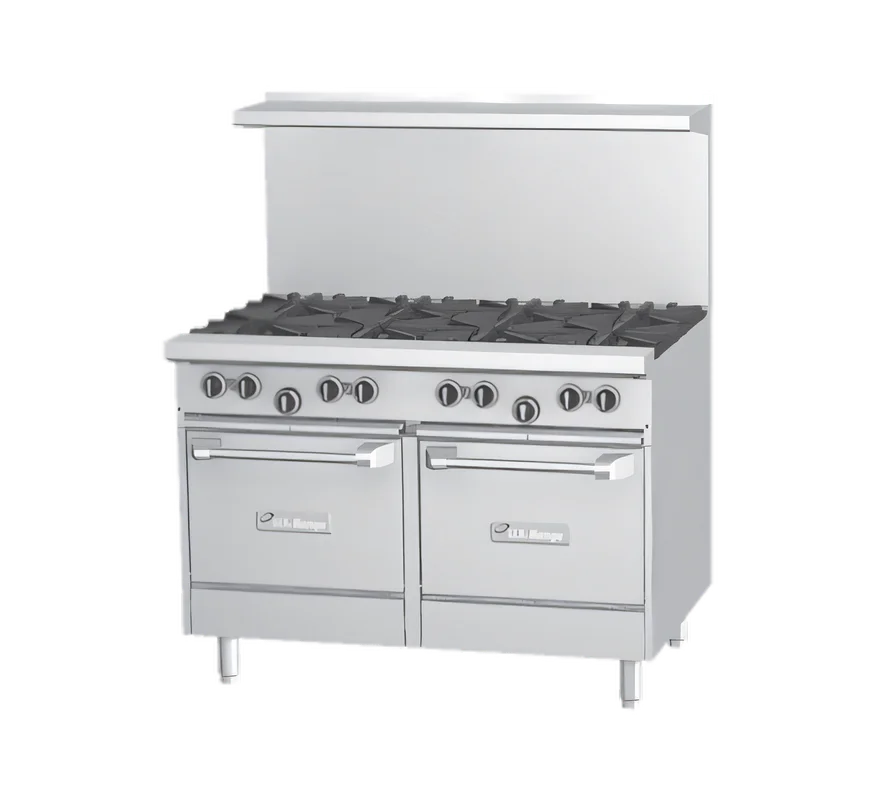

Model U48-8LL | 8 Open Burners & 2 Space-Saver Ovens
Built for demanding, high-volume kitchens, the U.S. Range U Series 48″ range delivers 320,000 BTU of dependable Garland performance in a compact footprint that fits virtually any cook-line.
Features
- Eight 32,000 BTU/hr 2-piece cast-iron open burners with ergonomic split top-ring grates.
- Two 20″ space-saver ovens, each with a 32,000 BTU cast-iron “H” burner and snap-action thermostat (low–500 °F / 260 °C).
- Roomy 27″ (686 mm) deep work top and 5″ (127 mm) stainless plate rail for efficient plating.
- Stainless steel front, sides, removable 2-piece backguard & shelf—easy to keep sanitary.
- 6″ (152 mm) stainless steel legs with adjustable feet for fast leveling.
- Full-width 12″ (305 mm) stamped drip trays beneath every two-burner section.
- Large, reinforced control knobs and “keep-cool” oven door handles for operator comfort.
- Factory-supplied gas pressure regulator; field convertible for Natural or LP gas.
- Porcelain-enamel oven bottom & door liner resists corrosion and wipes clean.
- Three-position removable rack guides with one nickel-plated rack supplied per oven.
- Accepts standard 18″ × 26″ sheet pans (front-to-back).
- Even-bake, fast-recovery design keeps up with peak-period demand.
- Heavy-duty chassis with reinforced corners for long service life.
- Cast-iron burner bowls concentrate heat and resist warping.
- 4-1/4″ (108 mm) wide grease trough directs runoff to a front-removable drawer.
- Swivel casters (front locking, rear swivel) – maintain mobility while meeting code.
- Low-profile 9-3/8″ (238 mm) backguard.
- Additional oven racks.
- Flanged deck-mount legs for marine or curb installations.
- Celsius temperature dials & piezo pilot ignition for griddles (factory-installed).
Specifications
| Nominal Width | 48″ (Actual: 47-1/4″ / 1200 mm) |
|---|---|
| Depth | 34-1/2″ (876 mm) including front rail |
| Work-Top Depth | 27″ (686 mm) |
| Height (with standard backguard) | 57″ (1448 mm) |
| Open Burners | 8 × 32,000 BTU cast-iron, lift-off heads |
| Total Burner Input (Cooktop) | 256,000 BTU/hr |
| Oven Burners | 2 × 32,000 BTU cast-iron “H” style |
| Oven Interiors (each) | 13″ × 26″ × 20″ (330 × 660 × 508 mm) |
| Total Gas Input | 320,000 BTU/hr (Natural Gas) |
| Gas Connection | 3/4″ NPT rear manifold; 4.5″ WC Natural / 10″ WC LP |
What our Experts Think
-
Maximum Burner Capacity: Ten open burners at 32,000 BTU each provide massive simultaneous cooking power, ideal for high-volume kitchens running multiple pots and pans.
-
Built-for-Commercial Durability: Stainless-steel front, sides, plate rail, and backguard with 6″ adjustable legs ensure longevity, easy cleaning, and stable installation for daily heavy use.
-
Large Work Surface: 60″ wide by ~27″ deep cooktop provides ample space to manage multiple cooking tasks without crowding.
-
High Total Output for Demanding Workloads: Total rating around 320,000 BTU supports intense cooking tasks like searing, boiling, and stock preparation at full commercial pace.
-
Storage-Focused Base: Two integrated storage bases instead of ovens allow convenient storage for pots, pans, utensils, and sheet trays directly under the cooktop.
-
Pro-Kitchen-Ready Build: Heavy-duty cast iron burners, stamped drip trays, easy-to-use control knobs, and robust gas regulation make it ideal for professional kitchens, catering, or restaurant environments.
Q&A
Q: What is the U60‑10SS?
A: A 60‑inch‑wide commercial gas range with ten open burners and dual storage-base compartments (no oven), designed for high-volume cooking in professional kitchens.
Q: What does the cooktop offer?
A: Ten open burners, each ~32,000 BTU, providing a total cooktop output of approximately 320,000 BTU — suitable for simultaneous use of multiple pots and pans.
Q: What are the build materials and construction features?
A: Stainless-steel front, sides, backguard, and plate rail for durability and easy cleaning. Adjustable 6″ stainless-steel legs for leveling. Backguard includes a removable shelf for staging or storage.
Q: Does it include an oven?
A: No. Instead, it has storage bases under the cooktop for pans, trays, or kitchen tools.
Q: What type of kitchen is this range suited for?
A: High-volume commercial kitchens such as restaurants, catering operations, or institutional kitchens that require many burners and extra storage space below.
Q: Is it suitable for residential use?
A: No. Its size, gas requirements, heat output, and commercial-grade build make it appropriate only for professional kitchens with proper ventilation and gas hookup.
Maintenance Tips
*]:pointer-events-auto scroll-mt-[calc(var(–header-height)+min(200px,max(70px,20svh)))]“ dir=“auto“ data-turn-id=“request-WEB:b75a9bb8-57d8-4b4a-abcd-a34932512841-38″ data-testid=“conversation-turn-78″ data-scroll-anchor=“true“ data-turn=“assistant“>
-
Clean burners and grates daily: remove grates and burner caps, wash with warm soapy water, and dry thoroughly before reassembly.
-
Clear and inspect burner ports regularly with a wire or brush to maintain proper gas flow and stable flames.
-
Wipe stainless steel surfaces daily with mild detergent and a soft cloth; avoid abrasive cleaners or steel wool to protect the finish.
-
Empty and clean drip trays and grease pans after each use to prevent grease buildup and fire hazards.
-
Clean griddle or hot-top surfaces properly; if cast iron, lightly oil and season after washing to prevent rust.
-
Allow the range to cool before deep cleaning and dry all components thoroughly to avoid warping or corrosion.
-
Check control knobs, gas connections, and adjustable legs periodically for loose fittings or wear to ensure safe, stable operation.
-
Shut off the main gas valve if the unit will be idle for an extended period to prevent leaks.
