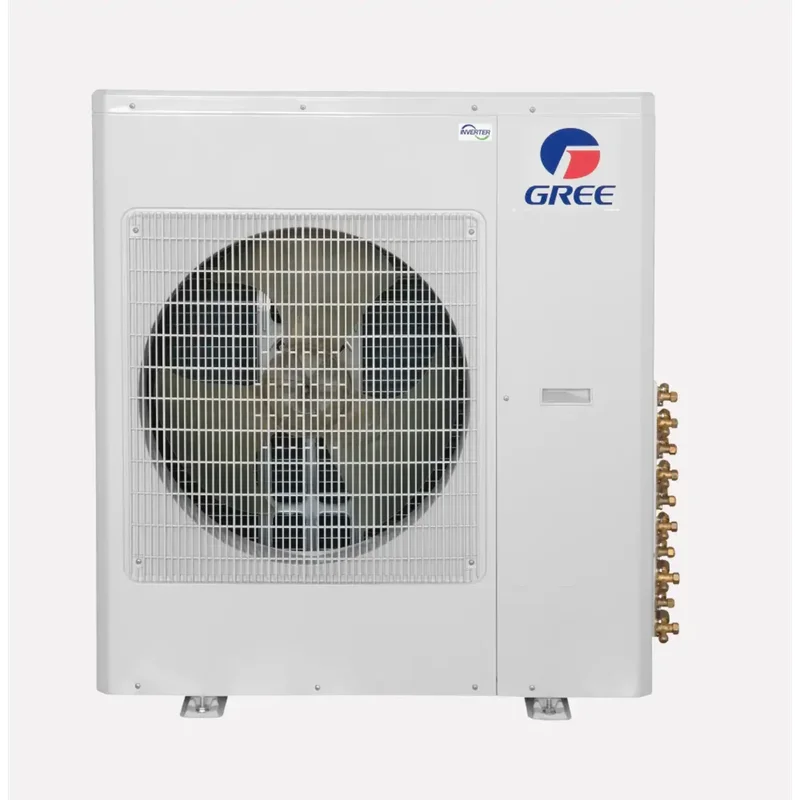

Gree Gen2 24K BTU 21 SEER2 Mini-Split Multi-Zone Heat Pump Condenser – MULTI24HP230V1EO
The Gree MULTI24HP230V1EO is a 24,000 BTU multi-zone heat pump that offers superior comfort and efficiency. Advanced G-10 inverter technology ensures stable operation and saves up to 20% power per year, compared to other models. The condenser also runs at lower noise levels than other mini split condensers. The unit uses eco-friendly R-410A refrigerant, an optimized fan with anti-corrosion coating, and a brushless fan motor.
The MULTI24HP230V1EO is AHRI Certified and comes with a 5-year limited warranty. It can be connected to up to 3 indoor units, and is compatible with a wide range of indoor units from Gree.
Features
- Minimum 1 connected zone
- Maximum 3 connected zones
- No refrigerant branch box required
- Minimum 9,000 BTU connected capacity
- Maximum 36,000 BTU connected capacity
Specifications
| SKU | MULTI24HP230V1EO |
|---|---|
| Brand / Manufacturer | Gree |
| System Type | Multi-Zone Mini-Split Outdoor Heat Pump |
| Cooling Capacity | 23,200 BTU |
| Heating Capacity | 24,000 BTU |
| BTU / Tonnage | 24,000 BTU / 2 Ton |
| Tonnage | 2 Ton |
| AHRI Certificate Number | 210278976 & 210278975 |
| Energy Star Certified | Yes |
| SEER2 | 21 |
| HSPF2 | 10 |
| Refrigerant | R410A |
| Refrigerant Charge | Pre-charged for 98 ft |
| Compressor Type | Rotary |
| Electrical Requirements | 208/230V, 1 Phase, 60 Hz |
| Phase | Single Phase |
| Minimum Breaker Size | 23 Amps |
| Maximum Breaker Size | 30 Amps |
| Liquid Line Size | 1/4″ (3) |
| Suction Line Size | 3/8″ (3) |
| Maximum Line Set Length | 65 ft |
| Maximum System Piping | 197 ft |
| Heating Operating Range (Outdoor) | -5°F to 75°F |
| Cooling Operating Range (Outdoor) | 0°F to 118°F |
| Outdoor Sound Level | 59 dB(A) |
| Weight | 163.9 lbs |
| Dimensions (H × W × D) | 31.1″ × 35.1″ × 14.5″ |
What our Experts Think
-
Multi‑Zone Flexibility: Supports multiple indoor units from a single outdoor condenser — ideal for whole‑home or multi‑room climate control.
-
High Seasonal Efficiency: ~21 SEER2 rating helps reduce energy use and lower operating costs compared to less efficient multi‑zone systems.
-
Heat Pump Year‑Round Comfort: Provides both cooling and heating with reliable performance across a wide temperature range.
-
Inverter Technology: Advanced G10 inverter compressor delivers precise temperature control, smooth modulation, and reduced cycling for quieter, more efficient operation.
-
Quiet & Intelligent Operation: Low sound levels with intelligent defrost and self‑diagnosis features simplify maintenance and enhance comfort.
-
Wide Compatibility: Works with various indoor air handler styles (wall mount, cassette, floor/ceiling, etc.) to tailor comfort to each space.
Q&A
Q: What is this product?
A: A multi-zone heat pump condenser/outdoor unit designed to support 2–3 indoor mini-split air handlers in a ductless system.
Q: What capacity does it have?
A: 24,000 BTU, ideal for medium to larger spaces with multiple zones.
Q: How energy efficient is it?
A: 21 SEER2 cooling efficiency with strong heating performance, reducing energy costs year-round.
Q: What refrigerant is used?
A: R-410A refrigerant for reliable, efficient operation.
Q: What technology is included?
A: Inverter technology enables energy savings, quieter operation, precise temperature control, and lower power consumption.
Q: How many zones can it support?
A: Typically supports 2–3 indoor units, allowing independent climate control for multiple rooms.
Q: What operating temperatures can it handle?
A: Capable of cooling and heating across wide temperature ranges, suitable for both hot summers and cold winters.
Q: What performance features are included?
A: Intelligent defrost, auto restart after outages, self-diagnostics, and quiet outdoor operation (~56–58 dB(A)).
Q: Where is this unit best used?
A: Ideal for homes, apartments, offices, or light commercial spaces needing multi-zone cooling and heating from a single outdoor unit.
Q: Why choose this outdoor unit?
A: Combines multi-zone flexibility, inverter efficiency, wide climate capability, and quiet operation for balanced comfort across multiple spaces.
Maintenance Tips
-
Keep the outdoor unit clear: Regularly remove leaves, dirt, grass clippings, snow, and debris around the condenser to ensure unobstructed airflow and efficient heat exchange.
-
Clean coils gently: Periodically inspect the outdoor coils and brush off loose dirt with a soft brush or low‑pressure air; avoid harsh abrasion and do not spray water directly on electrical components.
-
Check condensate drainage: Ensure drain channels and condensate outlets are clear so water exits freely and won’t pool or cause rust.
-
Inspect refrigerant lines: Look for obvious kinks, wear, or insulation damage on line sets; if performance drops or ice forms, have a professional check refrigerant levels.
-
Watch for airflow obstructions: Maintain at least 2 ft of clearance around the unit and trim vegetation that could block ventilation.
-
Seasonal professional service: Have a qualified HVAC technician perform annual maintenance—checking refrigerant levels, electrical connections, coil condition, and overall system health—to maintain efficiency and longevity.
-
Power off during cleaning: Always disconnect power before cleaning or inspecting any parts to avoid electrical hazards.
