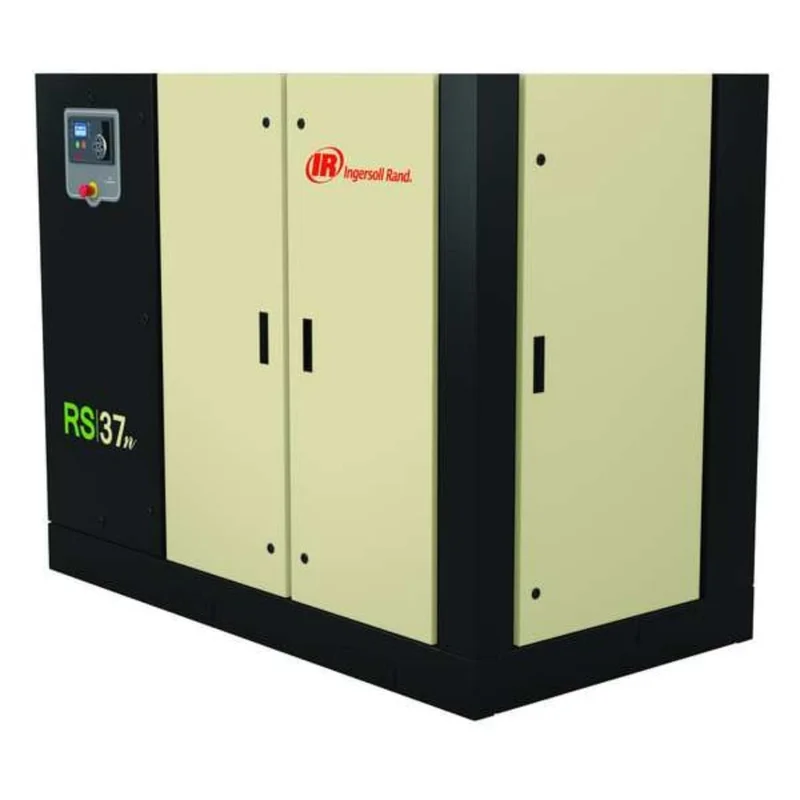

Ingersoll Rand Rotary Screw Air Compressor, 40hp, 184 cfm – 1761768142553_370
Rotary Screw Air Compressor, Air Tank Style Tankless, Output Power 40 hp, Free Air Flow Rate @ Maximum Pressure 184 cfm, Maximum Operating Pressure 125 psi, Phase Three, Input Voltage 460V AC, Air Dryer Included No, Pump Type Rotary Screw, Current Rating 61.0 A, Frequency 60 Hz, Maximum Speed 1,800 RPM, Duty Cycle Continuous, Sound Level 69 dBA, Enclosure Type Totally Enclosed
Features
- Item – Air CompressorRotary Screw Air Compressor
- Air Dryer IncludedNo
- HP – Air Compressor40.0 hp
- Phase – Electrical3
- Input Voltage – Air Compressor460V AC
*]:pointer-events-auto [content-visibility:auto] supports-[content-visibility:auto]:[contain-intrinsic-size:auto_100lvh] scroll-mt-[calc(var(–header-height)+min(200px,max(70px,20svh)))]“ dir=“auto“ data-turn-id=“request-WEB:82000aa2-ed96-4878-9d85-aae45d514237-64″ data-testid=“conversation-turn-22″ data-scroll-anchor=“true“ data-turn=“assistant“>
What Our Experts Think
-
The Ingersoll Rand 40 HP Rotary Screw Air Compressor delivers high-volume, continuous-duty performance for demanding industrial applications.
-
Tankless design allows flexible installation and integration into compressed air systems.
-
Capable of 184 CFM at 125 PSI, providing reliable airflow for large-scale operations.
-
Totally enclosed motor with rotary screw pump and 460V three-phase power ensures efficiency and long service life.
-
Quiet operation at 69 dBA makes it suitable for workshops and production floors.
Q&A
Q: What is the maximum air output?
A: It delivers 184 CFM at 125 PSI.
Q: Does this compressor include an air dryer?
A: No, an air dryer is not included.
Q: What type of power supply does it require?
A: It runs on 460V AC, three-phase power, drawing 61.0 A.
Q: Is it suitable for continuous operation?
A: Yes, it is designed for a 100% duty cycle.
Q: How loud is the compressor?
A: The sound level is 69 dBA, relatively quiet for a 40 HP unit.
Maintenance Tips
-
Perform regular oil checks and changes using manufacturer-recommended lubricants.
-
Inspect and replace air filters to maintain optimal airflow.
-
Monitor electrical connections and tighten as needed.
-
Keep the environment around the compressor clean to avoid debris ingress.
-
Schedule professional servicing to ensure peak performance and longevity.
