Description

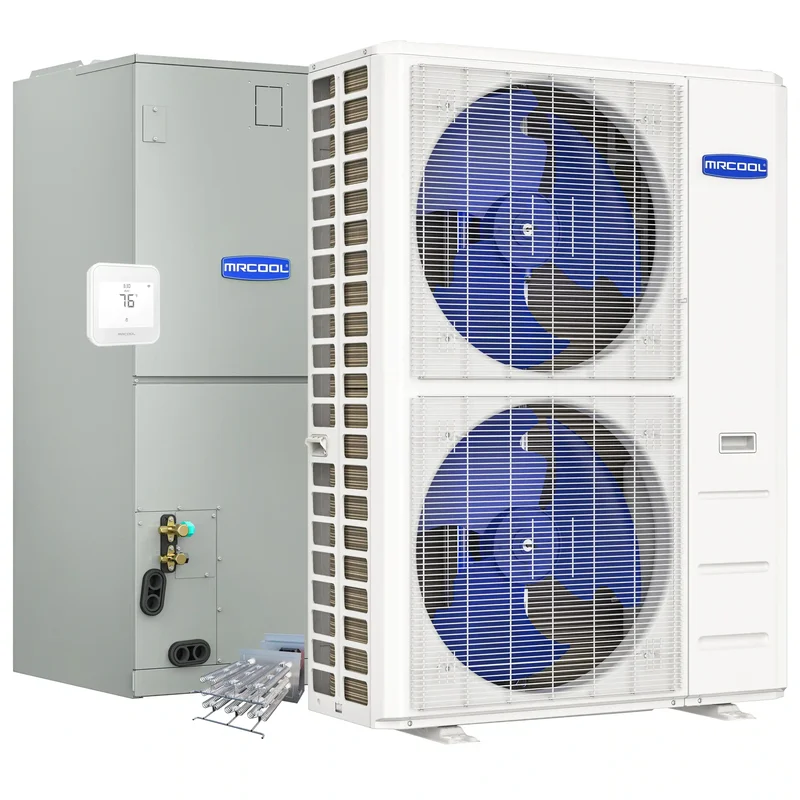

MRCOOL Hyper Heat 2nd Gen 48K BTU, 4 Ton, 16.5 SEER2 Heat Pump Condenser and Ducted Air Handler with 15kW Heat Kit – C48HP230BL00H15
The MRCOOL Central Heat Pump & Air Conditioner Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.
Features
-
MRCOOL Hyper Heat 2nd Gen 48K BTU, 4 Ton, 16.5 SEER2 Central Ducted Condenser
-
MRCOOL VersaPro 2nd Gen 48K BTU, 4 Ton Central Ducted Air Handler
-
MRCOOL 15kW VersaPro & Hyper Heat 2nd Gen 454B Heat Kit
- MRCOOL Smart Thermostat
1. MRCOOL Hyper Heat 2nd Gen 48K BTU, 4 Ton, 16.5 SEER2 Central Ducted Condenser (CENTRAL-48-HP-C-230B00-O)
-
R-454B refrigerant
-
10-year warranty, covering the compressor, parts, and labor
2. MRCOOL VersaPro 2nd Gen 48K BTU, 4 Ton Central Ducted Air Handler (MVP-48-HP-MUAH-230A00-O)
-
SEER2 rating of up to 16.5
-
R-454B refrigerant
-
Compatible with our Central Ducted Hyper Heat Condenser
-
10-year warranty
3. MRCOOL 15kW VersaPro & Hyper Heat 2nd Gen 454B Heat Kit (MVPHK15)
-
Compatible with the following air handlers: MVP-24-HP-MUAH-230A00-O, MVP-30-HP-MUAH-230A00-O, MVP-36-HP-MUAH-230A00-O, MVP-48-HP-MUAH-230A00-O, MVP-60-HP-MUAH-230A00-O
-
Works With: VersaPro 2nd Gen – Central Ducted Hyper Heat 2nd Gen
4. MRCOOL Smart Thermostat (MST04)
-
Ensure ideal temperature with presets for Home, Away, and Sleep that perfectly align to match your specific needs and preferences.
-
One App for All Your HVAC Systems
-
Global Control for Remote Accessibility
-
Works with Alexa, Google, Siri, and MRCOOL® Link
Specifications
| Condenser | |
|---|---|
| Dimensions | 16.34″ D x 38.39″ H x 38.58″ W |
| SEER2 | 16.5 |
| Tonnage | 4 |
| Cooling Capacity (BTU) | 48000 |
| Heating Capacity (BTU) | 50000 |
| Voltage (V) | 208-230 |
| Refrigerant Type | R454B |
| Air Handler | |
| Dimensions | 24.49″ D x 52.99″ H x 21.02″ W |
| Tonnage | 4 |
| Cooling Capacity (BTU) | 48000 |
| Heating Capacity (BTU) | 48000 |
| Voltage (V) | 115/208-230 |
| Max Lineset Length (FT) | 246 ft |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| Heat Kit | |
| Gross Dimensions | 14.5″ D x 24″ H x 10.25″ W |
| Gross Weight (Lbs) | 15 Lbs |
What our Experts Think
-
Powerful Year-Round Comfort – 48,000 BTU (4 Ton) heat pump efficiently heats and cools medium-to-large homes.
-
High Efficiency – 16.5 SEER2 rating delivers energy savings without compromising performance.
-
Robust Electric Backup – 15kW heat kit ensures reliable supplemental heating in extreme cold.
-
Ducted Air Handler – Integrates seamlessly with existing ductwork for whole-home comfort.
-
Durable & Quiet – 2nd Gen design ensures long-lasting, low-noise operation.
Q&A
Q: What is included in this MRCOOL Hyper Heat 2nd Gen system?
A: It includes a 48,000 BTU (4 ton) heat pump condenser, ducted air handler, and a 15kW electric heat kit for supplemental heating.
Q: How energy efficient is the system?
A: With a 16.5 SEER2 rating, it provides efficient cooling and heating while lowering energy costs.
Q: Can it provide both heating and cooling?
A: Yes, the heat pump condenser delivers year-round heating and cooling, while the 15kW heat kit ensures strong supplemental heat during cold weather.
Q: What size area can it cover?
A: Ideal for medium to large homes up to approximately 2,000–2,500 sq. ft., depending on insulation and climate.
Q: Is it compatible with existing ductwork?
A: Yes, the ducted air handler integrates with standard HVAC duct systems for seamless installation.
Q: Who should choose this system?
A: Homeowners needing a powerful, energy-efficient central HVAC system with supplemental heating for extreme winter conditions.
Maintenance Tips
-
Air Filter Care: Replace or clean indoor filters every 1–3 months to maintain airflow and efficiency.
-
Outdoor Unit Maintenance: Keep condenser free of leaves, dirt, and other debris.
-
Ductwork Inspection: Seal leaks and clean ducts to ensure even air distribution.
-
Condensate Drain: Ensure drain lines remain clear to prevent water buildup.
-
Coil Cleaning: Schedule annual cleaning of evaporator and condenser coils for peak efficiency.
-
Heat Kit Check: Inspect the 15kW electric heat kit for proper operation and secure connections.
-
Professional Service: Arrange yearly inspections to maintain 16.5 SEER2 efficiency and prolong system life.
