Description

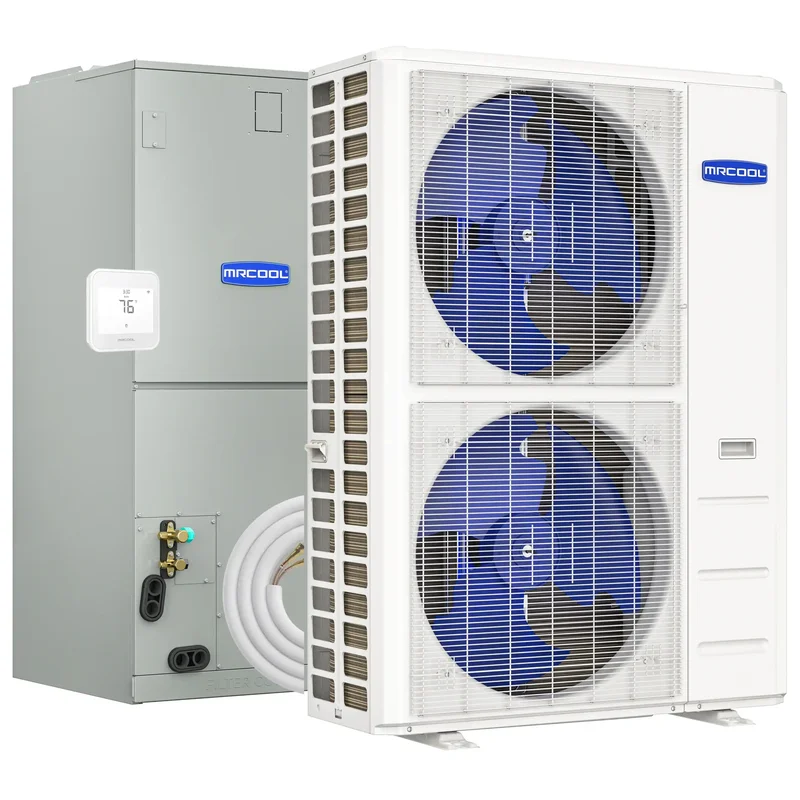

MRCOOL Hyper Heat 2nd Gen 60K BTU, 5 Ton, 16 SEER2 Heat Pump Condenser and Ducted Air Handler with 15 Ft. R-454B No-Vac Lineset – CENTRAL-60-HP-230B15
The MRCOOL Central Heat Pump & Air Conditioner Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.
Features
-
MRCOOL Hyper Heat 2nd Gen 60K BTU, 5 Ton, 16 SEER2 Central Ducted Condenser
-
MRCOOL VersaPro 2nd Gen 54K BTU, 5 Ton Central Ducted Air Handler
-
MRCOOL 15 Ft. R-454B No-Vac Lineset
1. MRCOOL Hyper Heat 2nd Gen 60K BTU, 5 Ton, 16 SEER2 Central Ducted Condenser (CENTRAL-60-HP-C-230B00-O)
-
Thermostat makes it easy to control your home’s climate.
-
10-year warranty covering the compressor, parts, and labor,
2. MRCOOL VersaPro 2nd Gen 54K BTU, 5 Ton Central Ducted Air Handler (MVP-60-HP-MUAH-230A00-O)
- Uses R-454B refrigerant
- Provides flexible installation options
- SEER2 rating of up to 16
3. MRCOOL 15 Ft. R-454B No-Vac Lineset (NV15-3834-O)
- Kink Resistant – Precharged
- Simple Secure Quick Connect
- UV Protected Insulation
- Works With: VersaPro 2nd Gen – Central Ducted Hyper Heat 2nd Gen
4. MRCOOL Smart Thermostat (MST04)
-
Ensure ideal temperature with presets for Home, Away, and Sleep that perfectly align to match your specific needs and preferences.
-
One App for All Your HVAC Systems
-
Global Control for Remote Accessibility
-
Works with Alexa, Google, Siri, and MRCOOL® Link
Specifications
| Condenser | |
|---|---|
| Dimensions | 16.34″ D x 52.48″ H x 37.48″ W |
| SEER2 | 16 |
| Tonnage | 5 |
| Cooling Capacity (BTU) | 54000 |
| Heating Capacity (BTU) | 56000 |
| Voltage (V) | 208-230 |
| Refrigerant Type | R454B |
| Air Handler | |
| Dimensions | 24.49″ D x 52.99″ H x 21.02″ w |
| Tonnage | 5 |
| Cooling Capacity (BTU) | 54000 |
| Heating Capacity (BTU) | 54000 |
| Voltage (V) | 115/208-230 |
| Lineset | |
| Dimensions | 30″ D x 30″ H x 5″ W |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 2.11 |
| Line Set Length | 15ft |
| Lineset Fitting Type | Quick-Connect |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
What our Experts Think
-
Efficient Heating & Cooling
18.1 SEER2 rating ensures energy savings with powerful climate control. -
Ideal 2-Ton Capacity
Perfect for small to medium-sized spaces, delivering consistent comfort. -
Eco-Friendly Refrigerant
Uses R-454B No-Vac lineset for reduced environmental impact and easy installation. -
Simplified Setup
Includes 35 ft. lineset to streamline installation and reduce potential leaks. -
Reliable Performance
Trusted MRCOOL build quality ensures durability and long-term efficiency.
Q&A
Q: What is the MRCOOL Hyper Heat 2nd Gen 60K BTU system?
A: A 5-ton heat pump condenser with ducted air handler, designed for powerful heating and cooling in large spaces.
Q: What is the SEER2 efficiency rating?
A: It offers a 16 SEER2 rating for energy-efficient operation.
Q: What refrigerant does it use?
A: Uses environmentally friendly R-454B refrigerant.
Q: What comes with the system?
A: Includes heat pump condenser, ducted air handler, and 15 ft. R-454B No-Vac lineset for easy installation.
Q: What size space is it best for?
A: Ideal for large homes or commercial spaces requiring 5 tons of capacity.
Maintenance Tips
-
Clean or replace air filters every 1-3 months.
-
Keep the outdoor condenser free from debris and blockages.
-
Schedule annual professional HVAC inspections.
-
Check refrigerant levels during service.
-
Maintain consistent thermostat settings for efficiency.
-
Inspect ductwork for leaks and proper insulation.
