Description

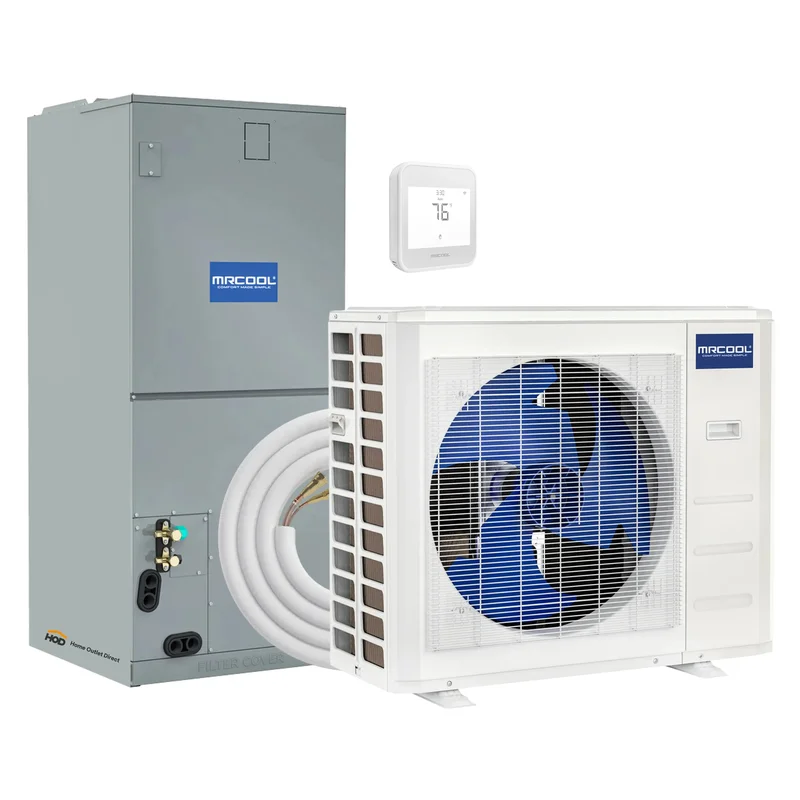

MRCOOL VersaPro 2nd Gen Central Split System with 18K BTU, 1.5 Ton, 18.8 SEER2, Heat Pump Condenser and Ducted Air Handler with 35 Ft. R-454B No-Vac Lineset – MVP-18-HP-230A35
The MRCOOL Central Split System Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.
Features
-
MRCOOL VersaPro 2nd Gen 18K BTU, 1.5 Ton, 18.8 SEER2 Central Ducted Heat Pump Condenser
-
MRCOOL VersaPro 2nd Gen 18K BTU, 1.5 Ton Central Ducted Air Handler
-
MRCOOL 35 Ft. R-454B No-Vac Lineset
-
MRCOOL Smart Thermostat
1. MRCOOL VersaPro 2nd Gen 18K BTU, 1.5 Ton, 18.8 SEER2 Central Ducted Heat Pump Condenser (MVP-18-HP-C-230A00-O)
-
1.5 Ton
-
SEER2 rating of 18.8 and an HSPF4
-
R-454B refrigerant
-
10-year warranty covering the compressor and parts
2. MRCOOL VersaPro 2nd Gen 18K BTU, 1.5 Ton Central Ducted Air Handler (MVP-18-HP-MUAH-230A00-O)
-
1.5 Ton
-
SEER2 rating of up to 18.8
-
R-454B refrigerant
-
10-year warranty
3. MRCOOL 35 Ft. R-454B No-Vac Lineset (NV35-3834-O)
-
Kink Resistant – Precharged
-
Simple Secure Quick Connect
-
UV Protected Insulation
-
Works With: VersaPro 2nd Gen – Central Ducted Hyper Heat 2nd Gen
4. MRCOOL Smart Thermostat (MST04)
-
Ensure ideal temperature with presets for Home, Away, and Sleep that perfectly align to match your specific needs and preferences.
-
One App for All Your HVAC Systems
-
Global Control for Remote Accessibility
-
Works with Alexa, Google, Siri, and MRCOOL® Link
Specifications
| Condenser | |
|---|---|
| Dimensions | 12.99″ D x 21.81″ H x 31.69″ W |
| SEER2 | 18.8 |
| Tonnage | 1.5 |
| Cooling Capacity (BTU) | 18000 |
| Heating Capacity (BTU) | 18000 |
| Voltage (V) | 208-230 |
| Refrigerant Type | R454B |
| Air Handler | |
| Dimensions | 17.52″ D x 45″ H x 21.02″ W |
| Tonnage | 1.5 |
| Cooling Capacity (BTU) | 18000 |
| Heating Capacity (BTU) | 18000 |
| Voltage (V) | 115/208-230 |
| Lineset | |
| Dimensions | 41″ D x 41″ H x 5″ W |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 5.73 |
| Line Set Length | 35ft |
| Lineset Fitting Type | Quick-Connect |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
What our Experts Think
-
Top Efficiency: 18.8 SEER2 rating ensures lower energy costs and superior cooling performance.
-
Ideal Capacity: 18,000 BTU (1.5 Ton) perfect for small to medium-sized homes or spaces.
-
Eco-Friendly Refrigerant: Uses R-454B for reduced environmental impact.
-
Complete Heat Pump System: Includes condenser, ducted air handler, and 35 ft no-vac lineset for streamlined installation.
-
Consistent Comfort: Designed for central ducted systems to deliver balanced airflow and reliable heating/cooling.
-
Durable & Trusted: MRCOOL’s quality guarantees long-lasting operation.
-
Smart Home Ready: Compatible with modern thermostats for easy temperature control
Q&A
Q: What is the MRCOOL VersaPro 2nd Gen 18K BTU Central Split System?
A: A 1.5-ton, ducted heat pump system with 18,000 BTU cooling capacity for efficient home climate control.
Q: What is the system’s efficiency rating?
A: It has a high 18.8 SEER2 rating for superior energy savings.
Q: What refrigerant does it use?
A: Uses eco-friendly R-454B refrigerant with a 35 ft. no-vacuum lineset included.
Q: What components come with this system?
A: Includes a heat pump condenser and a ducted air handler.
Q: Is this system suitable for residential installation?
A: Yes, designed for reliable, energy-efficient heating and cooling in homes.
Maintenance Tips
-
Replace or clean air filters every 1-3 months.
-
Keep the outdoor condenser clear of debris and vegetation.
-
Schedule annual professional checkups for refrigerant, coils, and electrical parts.
-
Clean air ducts and vents to maintain airflow.
-
Address unusual noises or performance drops promptly.
