Description

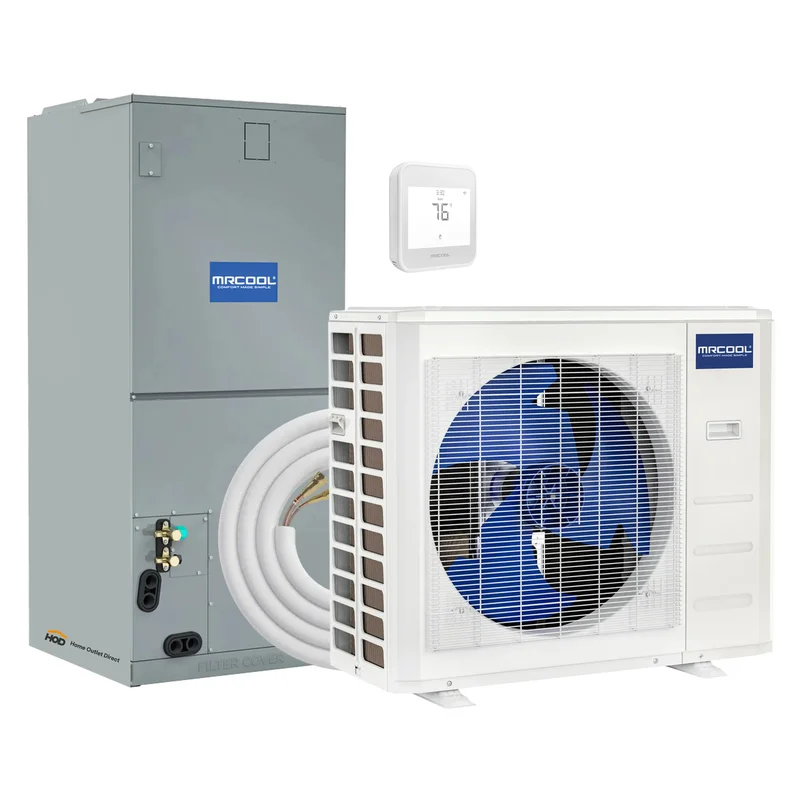

MRCOOL VersaPro 2nd Gen Central Split System with 36K BTU, 3 Ton, 16.1 SEER2, Heat Pump Condenser and Ducted Air Handler with 15 Ft. R-454B No-Vac Lineset – MVP-36-HP-230A15
The MRCOOL Central Split System Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.
Features
-
MRCOOL VersaPro 2nd Gen 36K BTU, 3 Ton, 16.1 SEER2 Central Ducted Heat Pump Condenser
-
MRCOOL VersaPro 2nd Gen 36K BTU, 3 Ton Central Ducted Air Handler
-
MRCOOL 15 Ft. R-454B No-Vac Lineset
-
MRCOOL Smart Thermostat
-
1. MRCOOL VersaPro 2nd Gen 36K BTU, 3 Ton, 16.1 SEER2 Central Ducted Heat Pump Condenser (MVP-36-HP-C-230A00-O)
-
3 Ton
-
16.1 and an HSPF4 rating of 8.7.
-
R-454B refrigerant
2. MRCOOL VersaPro 2nd Gen 36K BTU, 3 Ton Central Ducted Air Handler (MVP-36-HP-MUAH-230A00-O)
-
3 Ton
-
SEER2 rating of up to 17.4
-
R-454B refrigerant
3. MRCOOL 15 Ft. R-454B No-Vac Lineset (NV15-3834-O)
-
Kink Resistant – Precharged
-
Simple Secure Quick Connect
-
UV Protected Insulation
-
Works With: VersaPro 2nd Gen – Central Ducted Hyper Heat 2nd Gen
4. MRCOOL Smart Thermostat (MST04)
-
Ensure ideal temperature with presets for Home, Away, and Sleep that perfectly align to match your specific needs and preferences.
-
One App for All Your HVAC Systems
-
Global Control for Remote Accessibility
-
Works with Alexa, Google, Siri, and MRCOOL® Link
Specifications
| Condenser | |
|---|---|
| Dimensions | 16.14″ D x 31.89″ H x 37.24″ W |
| SEER2 | 16.1 |
| Tonnage | 3 |
| Cooling Capacity (BTU) | 36000 |
| Heating Capacity (BTU) | 36000 |
| Voltage (V) | 208-230 |
| Refrigerant Type | R454B |
| Air Handler | |
| Dimensions | 21.02″ D x 49.02″ H x 21.02″ W |
| Tonnage | 3 |
| Cooling Capacity (BTU) | 36000 |
| Heating Capacity (BTU) | 36000 |
| Voltage (V) | 115/208-230 |
| Lineset | |
| Dimensions | 30″ D x 30″ H x 5″ W |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 2.11 |
| Line Set Length | 15ft |
| Lineset Fitting Type | Quick-Connect |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
What our Experts Think
-
Reliable Year-Round Comfort – 36,000 BTU (3 Ton) system efficiently heats and cools medium-to-large homes.
-
Energy-Efficient Performance – 16.1 SEER2 rating delivers lower energy costs while maintaining comfort.
-
Heat Pump Technology – Provides consistent heating and cooling throughout the year.
-
15 Ft. R-454B No-Vac Lineset – Pre-charged line set simplifies installation and reduces labor time.
-
Durable & Quiet – 2nd Gen design ensures long-lasting, low-noise operation.
Q&A
Q: What is included in this MRCOOL VersaPro 2nd Gen system?
A: It includes a 36,000 BTU (3 ton) heat pump condenser, ducted air handler, and a 15 ft. pre-charged R-454B No-Vac lineset for simplified installation.
Q: How energy efficient is the system?
A: With a 16.1 SEER2 rating, it delivers efficient cooling and heating while reducing energy consumption.
Q: Can it provide both heating and cooling?
A: Yes, the heat pump condenser ensures year-round comfort with both heating and cooling capabilities.
Q: What makes the No-Vac lineset beneficial?
A: The pre-charged R-454B No-Vac lineset eliminates the need for vacuum pumps or additional refrigerant charging, simplifying installation.
Q: What size area can it cover?
A: Suitable for medium-sized homes up to approximately 1,500–2,000 sq. ft., depending on insulation and climate.
Q: Who should choose this system?
A: Homeowners looking for a mid-size, energy-efficient central HVAC system with easy installation and reliable year-round performance.
Maintenance Tips
-
Air Filter Care: Replace or clean filters every 1–3 months to maintain airflow and efficiency.
-
Outdoor Unit Maintenance: Keep condenser free of debris, leaves, and obstructions.
-
Ductwork Inspection: Seal leaks and clean ducts regularly for consistent air distribution.
-
Condensate Drain: Ensure drain lines are clear to prevent water buildup.
-
Coil Cleaning: Schedule annual cleaning of evaporator and condenser coils to maintain peak performance.
-
Lineset Check: Inspect the 15 ft. R-454B No-Vac lineset for proper installation and insulation.
-
Professional Service: Schedule yearly maintenance to maximize SEER2 efficiency and prolong system life.
