Description

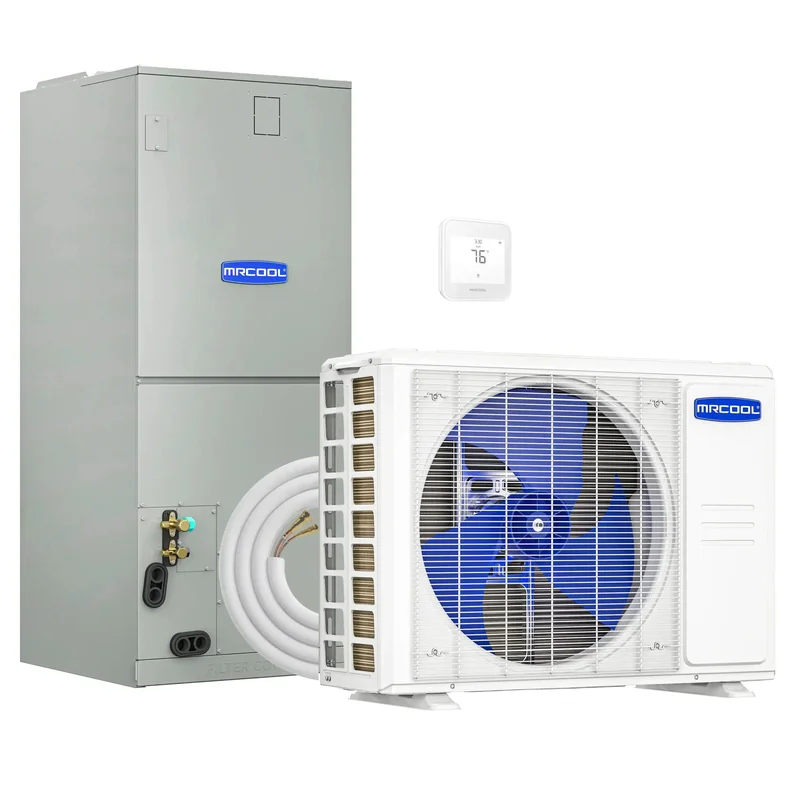

MRCOOL VersaPro 2nd Gen Central Split System with 60K BTU, 5 Ton, 15.2 SEER2, Heat Pump Condenser and Ducted Air Handler with 15 Ft. R-454B No-Vac Lineset – MVP-60-HP-230A15
The MRCOOL Central Split System Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.
Features
-
MRCOOL VersaPro 2nd Gen 60K BTU, 5 Ton, 15.2 SEER2 Central Ducted Heat Pump Condenser
-
MRCOOL VersaPro 2nd Gen 54K BTU, 5 Ton Central Ducted Air Handler
-
MRCOOL 15 Ft. R-454B No-Vac Lineset
-
MRCOOL Smart Thermostat
1. MRCOOL VersaPro 2nd Gen 60K BTU, 5 Ton, 15.2 SEER2 Central Ducted Heat Pump Condenser (MVP-60-HP-C-230A00-O)
-
5 Ton
-
SEER2 rating of 15.2 and an HSPF4 rating of 8.4
-
R-454B refrigerant
-
10-year warranty covering the compressor and parts
2. MRCOOL VersaPro 2nd Gen 54K BTU, 5 Ton Central Ducted Air Handler (MVP-60-HP-MUAH-230A00-O)
-
5 Ton
-
SEER2 rating of up to 16
-
R-454B refrigerant
-
10-year warranty
3. MRCOOL 15 Ft. R-454B No-Vac Lineset (NV15-3834-O)
-
Kink Resistant – Precharged
-
Simple Secure Quick Connect
-
UV Protected Insulation
-
Works With: VersaPro 2nd Gen – Central Ducted Hyper Heat 2nd Gen
4. MRCOOL Smart Thermostat (MST04)
-
Ensure ideal temperature with presets for Home, Away, and Sleep that perfectly align to match your specific needs and preferences.
-
One App for All Your HVAC Systems
-
Global Control for Remote Accessibility
-
Works with Alexa, Google, Siri, and MRCOOL® Link
Specifications
| Condenser | |
|---|---|
| Dimensions | 16.34″ D x 38.39″ H x 38.58″ W |
| SEER2 | 15.2 |
| Tonnage | 5 |
| Cooling Capacity (BTU) | 54000 |
| Heating Capacity (BTU) | 54000 |
| Voltage (V) | 208-230 |
| Refrigerant Type | R454B |
| Air Handler | |
| Dimensions | 24.49″ D x 52.99″ H x 21.02″ W |
| Tonnage | 5 |
| Cooling Capacity (BTU) | 54000 |
| Heating Capacity (BTU) | 54000 |
| Voltage (V) | 115/208-230 |
| Lineset | |
| Dimensions | 30″ D x 30″ H x 5″ W |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 2.11 |
| Line Set Length | 15ft |
| Lineset Fitting Type | Quick-Connect |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
What our Experts Think
-
High Efficiency: Achieves a 15.2 SEER2 rating, offering energy-efficient cooling for larger spaces.
-
Complete System: Includes a 5-ton heat pump condenser, ducted air handler, and a 15 ft. R-454B No-Vac lineset, providing comprehensive heating and cooling solutions.
-
Flexible Installation: Supports multi-position configurations—upflow, downflow, or horizontal—allowing adaptability to various duct layouts.
-
Quiet Operation: Designed with a side-discharge compressor and variable-speed inverter technology, ensuring minimal noise levels.
-
Eco-Friendly: Utilizes R-454B refrigerant, a next-generation, environmentally responsible coolant that reduces greenhouse gas emissions without sacrificing performance.
-
Smart Control: Comes with a wireless remote featuring the Follow Me function, which automatically adjusts the airflow temperature based on the remote’s location in the room.
-
Warranty Assurance: Backed by a 10-year parts and compressor warranty, ensuring long-term reliability and peace of mind.
Q&A
Q: What is the cooling capacity?
A: 60,000 BTU (5 Ton).
Q: What SEER2 rating does it have?
A: 15.2 SEER2 for energy efficiency.
Q: What refrigerant is used?
A: Environmentally friendly R-454B refrigerant.
Q: What components are included?
A: Heat pump condenser, ducted air handler, and 15 ft. no-vac lineset.
Q: Is this system suitable for ducted HVAC setups?
A: Yes, designed for central ducted installations.
Maintenance Tips
-
Clean or replace air filters every 1–3 months for efficient airflow and system performance
-
Keep outdoor condenser unit free of debris, leaves, and obstructions
-
Inspect and clean evaporator and condenser coils annually to maintain efficiency
-
Regularly check and clear condensate drain lines to prevent water damage
-
Ensure all electrical connections are secure and corrosion-free
-
Test thermostat settings periodically for proper heating and cooling operation
