Description

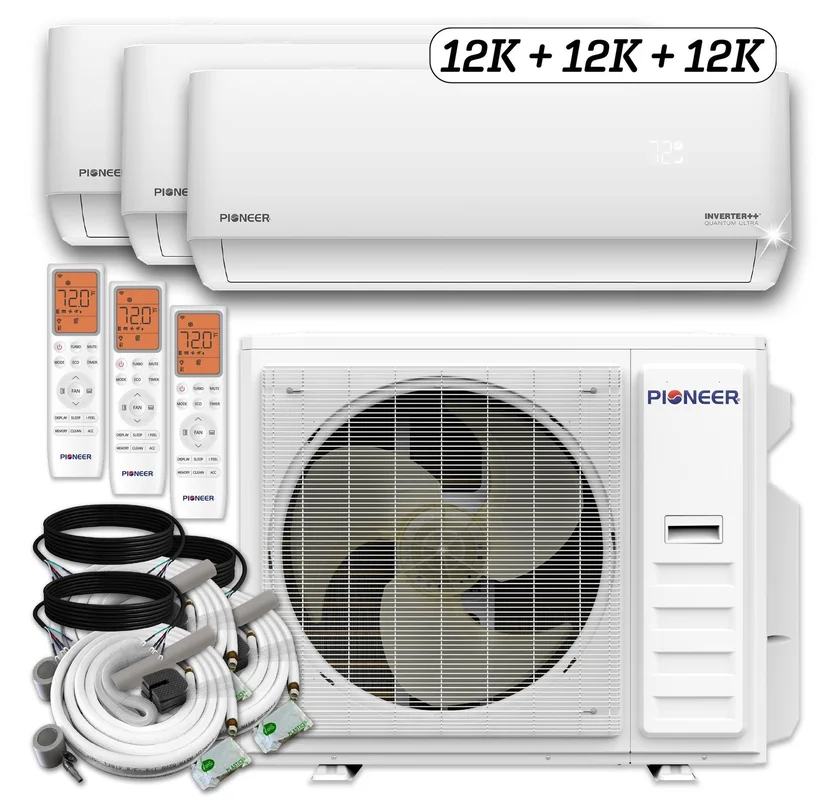

Pioneer Triple Split 36000 BTU 3-Ton Quantum Ultra Wi-Fi 22.5 SEER2 Energy-Star Multi (3) Zone Wall Mount Air Conditioner Heat Pump 230-Volt – WYT040GLSI24M4-12W-12W-12W
Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer Quantum Ultra multi split systems are available in 5 versions; for 2, 3, 4, and 5 zones.
Features
- Ultra-high efficiency inverter++ ductless multi split quad (4) circuit heat pump system (paired with 3x indoor units to function effectively as a stronger 3-zone system)
- (x3) inside unit cooling capacity: 12,000 BTU/H nominal capacity, condensing system 35,000 BTU/H (Range: 5,500 minimum – 41,000 maximum) with 22.5 SEER2/12.0 EER2 efficiency
- Heating capacity: 36,000 BTU/H nominal (range 5,500 minimum – 41,000 maximum) with 9.5 HSPF2/3.5 COP2 efficiency
- Voltage: 208 – 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)
- Energy-Star Certified and Wi-Fi Enabled
- Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with wi-fi, insulated flared line set with other installation accessories
- Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
- Ultra low ambient system can heat with high capacity at -13°F ambient outdoor temperatures
- Pre-charged with eco-friendly R454-B refrigerant to support total combined attached lineset lengths up to 100 ft long
- Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
- Certified by: ETL, AHRI, DOE for safety, performance and efficiency
- Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption
Manuals
- Technical Brochure
- Service Manual
- Submittal Sheet
- Installation Manual (Multi-Split Addendum)
- AHRI Certificate
- Energy Guide
What our Experts Think
-
Efficient year‑round comfort: With 12,000 BTU capacity and a 19 SEER2 inverter rating, this unit delivers balanced cooling and heating performance with lower energy consumption compared to conventional systems — ideal for medium spaces like living rooms, home offices, or master bedrooms.
-
Smart inverter heat pump design: Variable‑speed inverter technology ensures precise temperature control, reduced cycling, and quieter operation, enhancing comfort and extending equipment life.
-
Full set convenience: Includes indoor/outdoor units, remote control, and 16 ft pre‑charged installation kit, simplifying professional installation and reducing extra part purchases.
-
Standard 230 V residential compatibility: Built for 208–230 V electrical service, making it straightforward to integrate into most home electrical systems without special power upgrades.
-
Reliable all‑season performance: Heat pump operation provides dependable cooling in summer and efficient heating in winter, expanding comfort throughout the year.
Q&A
Q1: What type of system is this Pioneer model?
A: It is a multi-zone 2-zone wall-mounted mini-split air conditioner with integrated heat pump, designed for efficient dual-zone climate control.
Q2: What cooling and heating capacity does it provide?
A: Offers 27,000 BTU cooling (2.25‑ton) with heat pump heating, ideal for two separate rooms or zones.
Q3: How energy-efficient is this unit?
A: Features 24 SEER2 efficiency and Energy-Star rating, ensuring energy savings and precise temperature control.
Q4: How many zones can it support?
A: Supports two indoor wall-mounted units, each with independent temperature control.
Q5: Does it support smart controls?
A: Yes, includes Wi-Fi connectivity for remote operation via smartphone or smart home systems.
Q6: What electrical requirements does it have?
A: Operates on 230 V single-phase power, compatible with standard residential or light-commercial circuits.
Q7: How does inverter technology improve performance?
A: Variable-speed inverter control provides quiet operation, precise temperature regulation, and energy efficiency.
Q8: Can it provide heating in cold climates?
A: Yes, the heat pump supports low-ambient heating, providing year-round comfort.
Q9: What indoor unit style is included?
A: Features high-wall mounted units for each zone with optimized airflow and quiet operation.
Q10: What spaces is this system best suited for?
A: Ideal for apartments, dual-bedroom setups, offices, or small multi-zone residential spaces.
Maintenance Tips
-
Clean indoor air filters every 2–4 weeks to maintain airflow, efficiency, and healthy air quality across all three zones.
-
Keep the outdoor condenser coil free of dust, leaves, and debris to ensure optimal heat transfer and inverter performance.
-
Inspect condensate drain lines and pans regularly to prevent leaks or water buildup in each zone.
-
Check refrigerant lines, wiring, and mounting annually for safe and reliable operation.
-
Use self-clean cycles periodically to reduce moisture buildup and prevent mold or odors.
-
Maintain proper clearance around indoor and outdoor units for consistent airflow and balanced multi-zone temperature control.
-
Schedule annual professional servicing for inverter diagnostics, refrigerant checks, and full system optimization.
