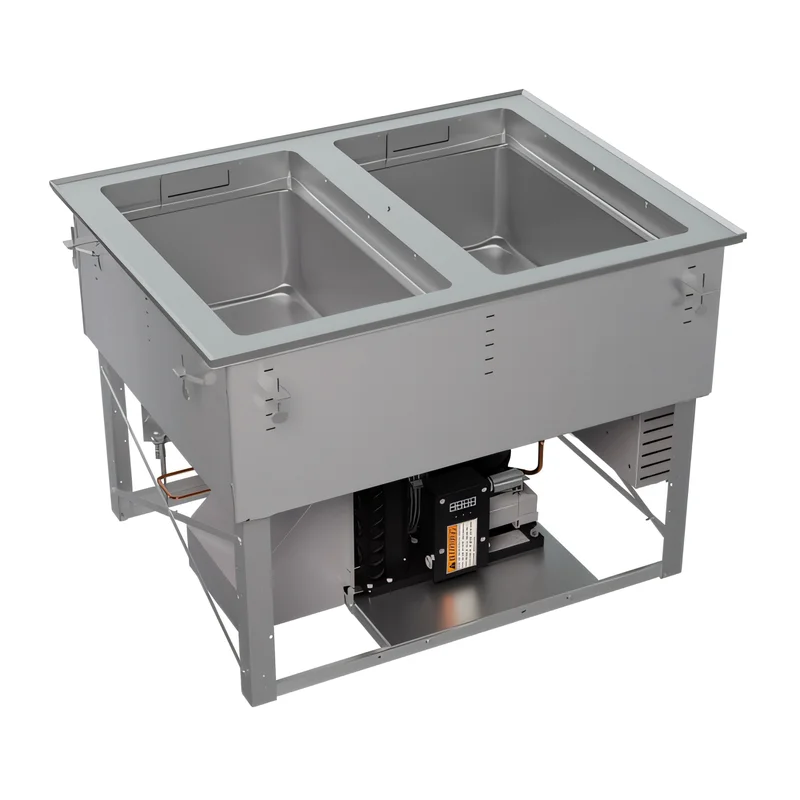

Vollrath FC-HCF-02208-AD-FF Steam Tables & Food Wells – FC-HCF-02208-AD-FF
Auto-Drain • Flat Flange • 120/208-240 V
One unit, three holding modes. The Vollrath FC-HCF-02208-AD-FF lets you run each well in HOT, COLD, or FROZEN mode independently—so breakfast can be piping hot, lunch chilled, and dessert served at scoop-ready temperatures, all from the same footprint. Built for demanding commercial kitchens, this drop-in combines rugged 18-gauge stainless steel construction with intuitive electronic controls and eco-friendly R290 refrigeration.
Features
- 3-in-1 performance – instantly switch any well between HOT, COLD, or FROZEN.
- Independent electronic controls with easy-read display and 4 ft (1.2 m) remote-mount harness.
- Auto-Drain technology automatically empties water when changing from HOT to COLD/FROZEN modes—no manual valve to open.
- Flat flange sits flush with solid-surface, stainless or stone countertops for a clean, modern presentation.
- Accepts two full-size 12″ × 20″ pans or fractional pans (up to 6″ deep) with adapter bars.
- Cold-wall well with 2″ stepped recess blankets product with cold air to maintain NSF compliance.
- Foamed-in-place polyurethane insulation boosts efficiency and reduces energy costs.
- Rugged 18-gauge, 300-series stainless steel top, wells and user interface endure daily commercial use.
- Eco-friendly R290 refrigerant delivers powerful cooling with ultra-low Global Warming Potential (GWP).
- Made in the USA and backed by a 2-year parts & labor warranty.
Specifications
| Model | FC-HCF-02208-AD-FF |
|---|---|
| Number of Wells | 2 independent wells – selectable HOT / COLD / FROZEN |
| Pan Capacity | Two full-size (12″ × 20″) or fractional pans up to 6″ deep |
| Overall Dimensions (W × D × H) | 33.9″ × 26.0″ × 24.4″ |
| Countertop Cut-out (W × D) | 33 ¹⁄₁₆“ × 25 ¼“, ⅞“ corner radius (verify in field) |
| Material | 18-ga 300-series stainless steel top, wells & interface |
| Drain | ¾“ integral auto-drain (no master shut-off) |
| Refrigeration | Self-contained cold-wall, ¼ HP compressor, R290 refrigerant |
| Electrical | 120/208-240 V, 60 Hz, 1 ph, 1,250 W, 6.6 A, NEMA 14-20P, 6 ft cord |
What our Experts Think
-
Triple-Mode Flexibility:
Each of the two wells operates independently, allowing hot, cold, or frozen items side-by-side — ideal for versatile menu or buffet setups. -
Commercial-Grade Durability:
Constructed from 18-gauge, 300-series stainless steel for wells, top, and interface, built to withstand daily heavy use and easy to clean. -
Compact, Drop-In Design:
Fits standard countertop cut-outs (~33.9″ W × 26.0″ D × 24.4″ H) with flat-flange drop-in design and mounting clips for seamless integration. -
User-Friendly Controls & Auto-Drain:
Each well has electronic controls, and switching out of hot mode triggers automatic drain, eliminating manual valve adjustments. -
Energy-Efficient Refrigeration:
Uses eco-friendly refrigerant and insulated wells for efficient cold/frozen operation with minimal environmental impact. -
Versatile Foodservice Applications:
Perfect for buffet lines, salad bars, grab-and-go counters, or operations needing mixed-temperature food holding in a single footprint.
Q&A
Q: What is the Vollrath FC‑HCF‑02208‑AD‑FF?
A: A two-well modular drop-in food well that can independently operate in hot, cold, or frozen mode — ideal for buffet lines, salad bars, cafeterias, grab-and-go counters, or versatile service stations.
Q: How many wells and what pan sizes does it support?
A: It has 2 wells, each accommodating full-size or fractional food pans up to 6 inches deep.
Q: What temperature modes does each well support?
A: Each well can be independently set to hot, cold, or frozen, allowing different foods to be held at the correct temperatures simultaneously.
Q: What are its construction and build-quality features?
A: Constructed with 18-gauge 300-series stainless steel for the top, wells, and exterior, insulated with polyurethane foam, and includes refrigeration coils around the wells for cold or frozen operation. Designed for durability and long-term commercial use.
Q: What are its electrical and drainage specifications?
A: Operates on 120 / 208–240 V (single-phase), draws approximately 6.6 amps, with 625 watts per well. Features a built-in ¾-inch integral drain with auto-drain function for easy cleaning when switching between modes.
Q: What are its physical dimensions and installation requirements?
A: Measures approximately 33.9″ wide × 26.0″ deep × 24.4″ high, with a cut-out requirement around 33″ W × 25.25″ D, suitable for drop-in installation on counters.
Q: What operations or environments is this unit ideal for?
A: Perfect for buffet lines, self-serve stations, salad bars, grab-and-go cabinets, or commercial kitchens needing flexible hot, cold, and frozen holding.
Q: Why choose the FC‑HCF‑02208‑AD‑FF over traditional fixed-temperature wells?
A: Offers maximum flexibility (hot/cold/frozen), independent well control, durable stainless-steel construction, easy drop-in installation, auto-drain convenience, and reliable temperature maintenance, making it highly adaptable and efficient for modern food-service operations.
Maintenance Tips
-
Level and install properly: Ensure the unit sits flat and level to maintain proper drainage, heating, and cooling performance.
-
Use approved pan depths: Only use food pans up to 6″ deep to avoid overflow and ensure proper heating or cooling.
-
Maintain liquid in hot wells: Never operate hot wells dry; always maintain water or proper liquid to protect heating elements and ensure even heating.
-
Daily cleaning: Turn off power, drain any water, and wipe down the interior of each well and the exterior surfaces using a soft damp cloth and mild detergent. Avoid abrasive pads or steel wool.
-
Rinse thoroughly after cleaning: If detergent is used, rinse all surfaces with clean water to prevent corrosion or chemical buildup.
-
Protect electrical components: Do not spray or flood controls, cords, or plugs; never immerse electrical parts.
-
Monitor operating mode and ambient conditions: For hot, cold, or frozen modes, ensure ambient temperature and ventilation support proper operation.
-
Inspect drains regularly: Keep drain channels clear; blockages can impair operation or cause leaks.
-
Check seals, wiring, and components: Periodically inspect gaskets, electrical cords, plugs, and structural parts for wear or damage and address issues promptly to maintain safety and lifespan.
